Flat Lithium Polymer Battery Cell 553450 603450 3.7V 1100mAh 4.07wh

Name: Flat Lithium Polymer Battery Cell 553450 603450 37V 1100mAh 407wh
Brand: RESKY
Price: 1 USD

Quality Flat Lithium Polymer Battery Cell 553450 603450 3.7V 1100mAh 4.07wh wholesale

Certification : CE, RoHS, MSDS, Un38.3

Brand Name : RESKY

Model Number : LP553450

Place of Origin : China

MOQ : 10PCS

Price : Negotiable

Payment Terms : T/T,Western Union

Supply Ability : 50000pcs/day

Delivery Time : 7-10days

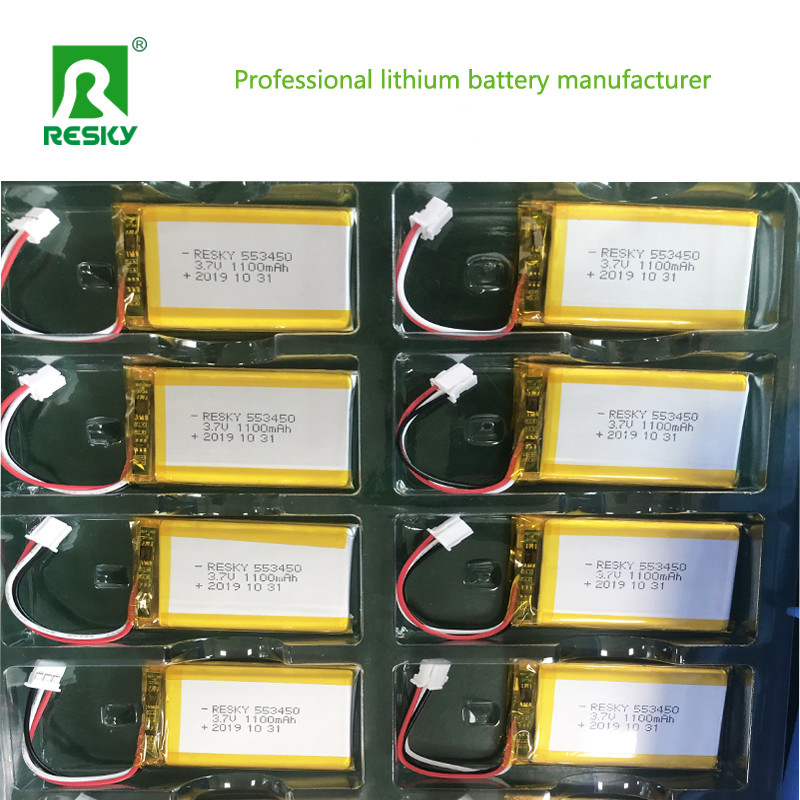

Packaging Details : Blister tray package with paper box

Model NO. : LP553450

Nominal Capacity : 1100mAh

Weight : 9g

MOQ : 10PCS

Cycle Life : 500cycles

Warranty : 12months

Shipping : DHL, FedEx, TNT, by Air, by Sea

HS Code : 8507600090

Contact Now

Product Description

Flat Lithium polymer battery cell 553450 603450 3.7V 1100mAh 4.07wh

NO.	Items	Specifications
1	batteries	3.7v 1100mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	1100mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V 0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:50±0.5mm (not including tabs) Width: 34±0.5mm Thickness:5.5±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Advantages:

High Energy Density: Lithium polymer battery cells offer significantly higher energy density compared to traditional battery types, enabling them to store more energy per unit weight or volume. This makes them ideal for devices where space is a constraint and long operational times are required.

Lightweight and Flexible Design: Due to their polymeric composition, lithium polymer batteries can be designed in various shapes and sizes, offering greater flexibility in integration into devices. Their lightweight nature also contributes to reducing the overall weight of the products they power.

Long Cycle Life: These batteries typically have a longer lifecycle, withstanding numerous charge and discharge cycles before significant capacity degradation occurs

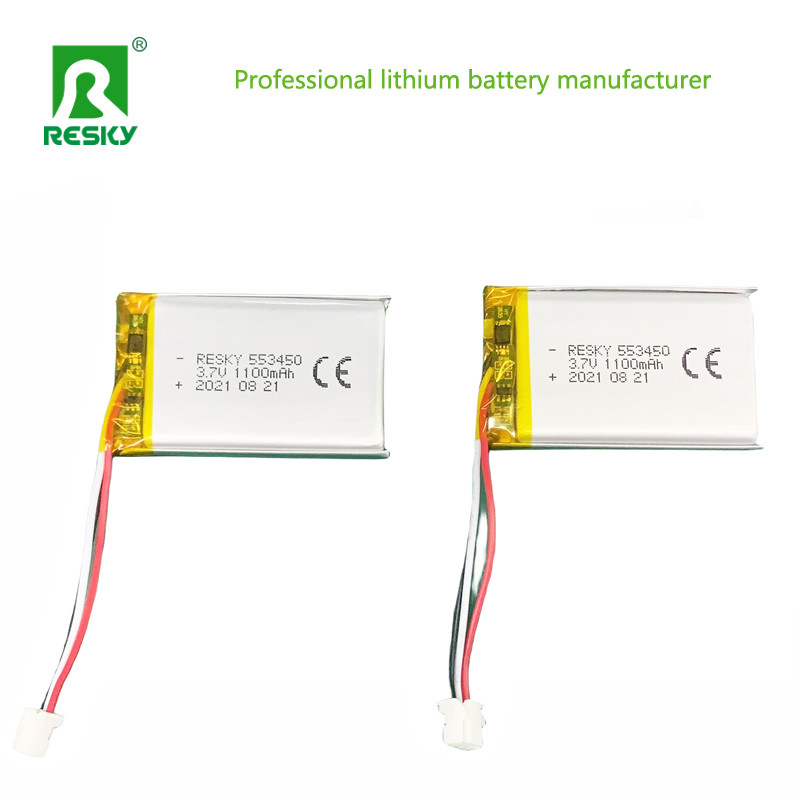

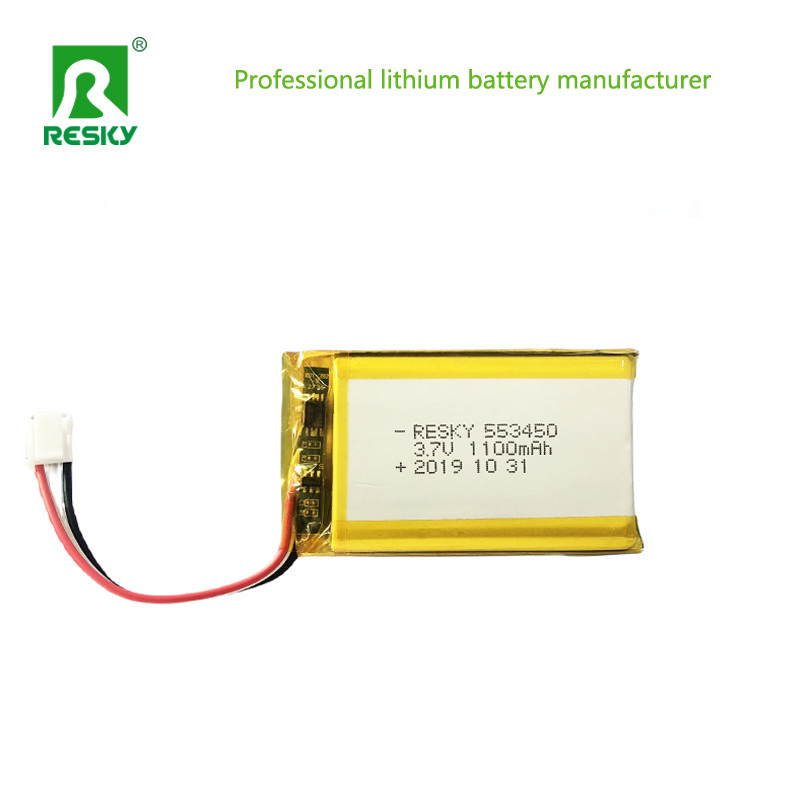

Pictures:

Flat Lithium Polymer Battery Cell 553450 603450 3.7V 1100mAh 4.07wh
