Portable Medical Device Lipo Cells 604070 3.7V 2000mAh 7.4wh

Product Categories

Shenzhen Resky Electronics Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Portable Medical Device Lipo Cells 604070 3.7V 2000mAh 7.4wh

Name: Portable Medical Device Lipo Cells 604070 37V 2000mAh 74wh
Brand: RESKY
Price: 1 USD

Quality Portable Medical Device Lipo Cells 604070 3.7V 2000mAh 7.4wh wholesale

Certification : CE, RoHS, MSDS, Un38.3

Brand Name : RESKY

Model Number : LP604070

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T,Western Union

Supply Ability : 100000PCS/Day

Delivery Time : 7-10days

Packaging Details : Paper box

Discharge Rate : Low Discharge Rate

Shape : Square Battery

Nominal Capacity : 2000mAh

Weight : 25g

Cycle Life : 500cycles

Warranty : 12months

Connector : Jst, Molex....

Specification : 6*40*70mm

HS Code : 8507600090

Contact Now

Product Description

Lithium Polymer Battery Cell 604070 3.7V 2000mAh 7.4wh For Portable Medical Device

NO.	Items	Specifications
1	batteries	3.7v 2000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	2000mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:70±2mm (not including tabs) Width:40±0.5mm Thickness:6±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Application:

Unmanned Aerial Vehicles (UAVs) or Drones

Drones need lightweight, high-energy-density batteries to support long flight durations. LiPo batteries are ideal for this purpose, enabling drones to perform extended missions without needing frequent battery swaps.

Remote-Controlled Toys and Models

LiPo batteries are popular in remote-controlled cars, planes, boats, and other toys due to their ability to provide high discharge rates and long runtimes. This makes them ideal for applications that require rapid acceleration and sustained performance.

Industrial and Medical Equipment

In industrial settings, LiPo batteries are used in tools and equipment that require compact, high-performance power sources. In the medical field, they are found in portable medical devices such as defibrillators and ECG machines, where reliability and long battery life are crucial.

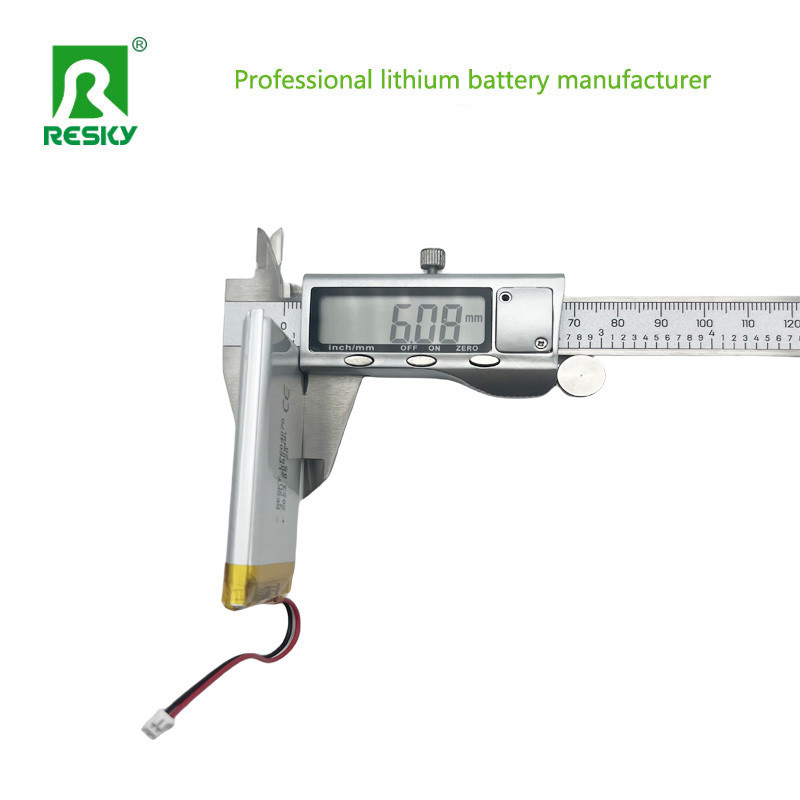

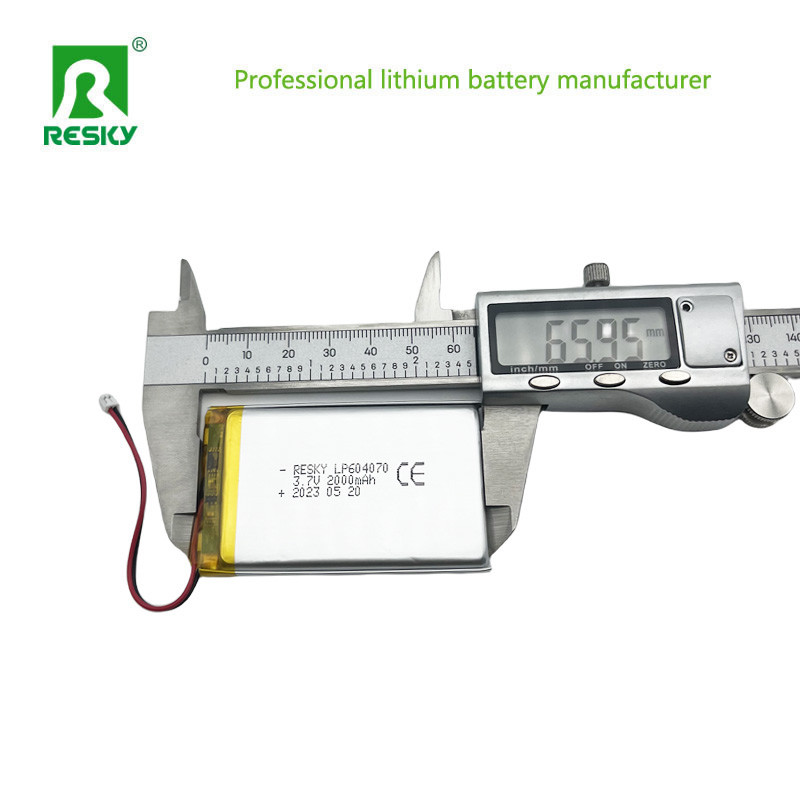

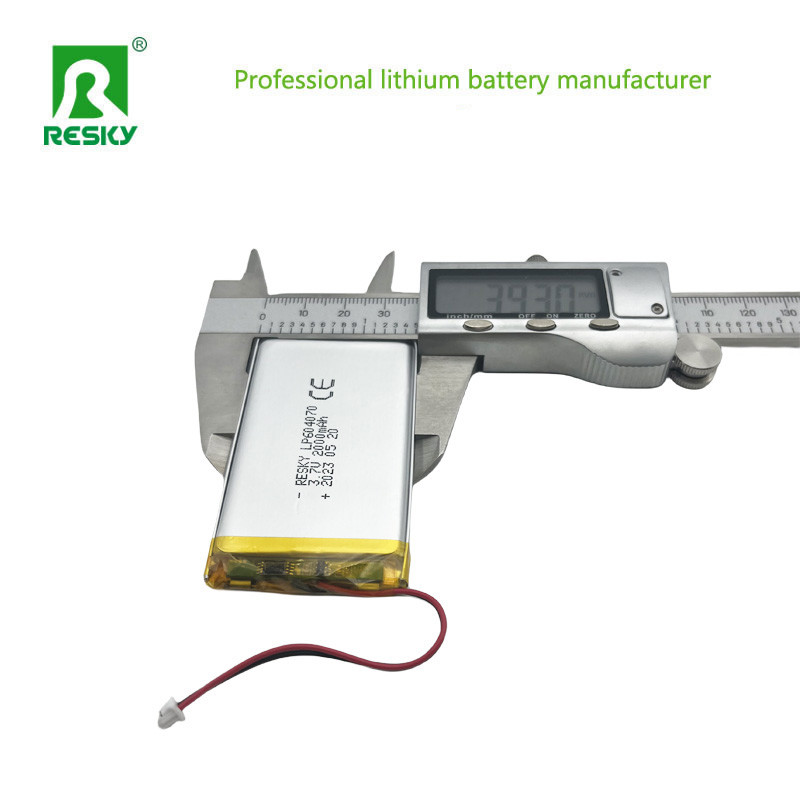

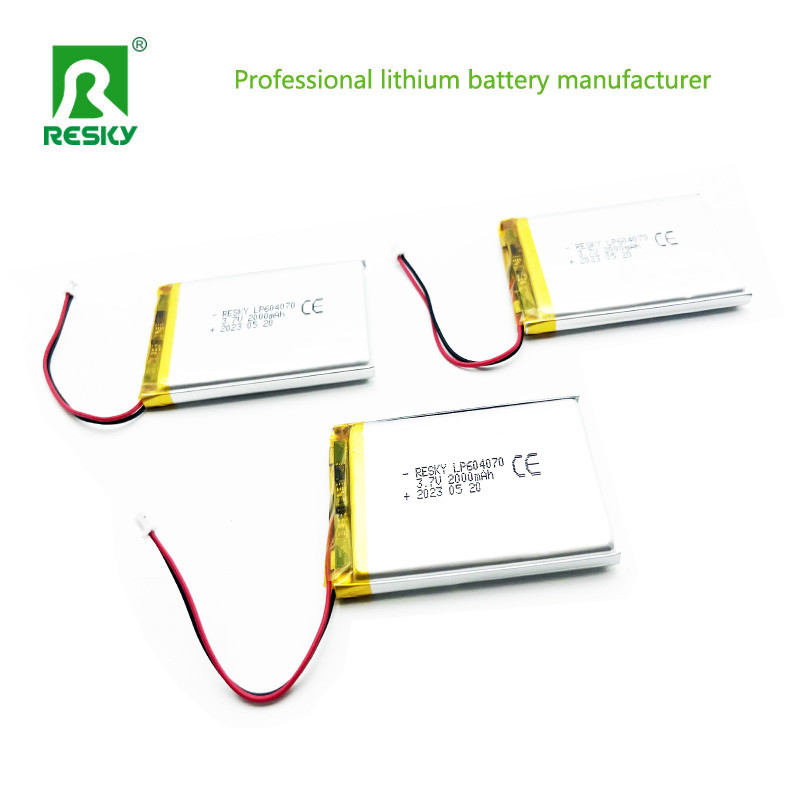

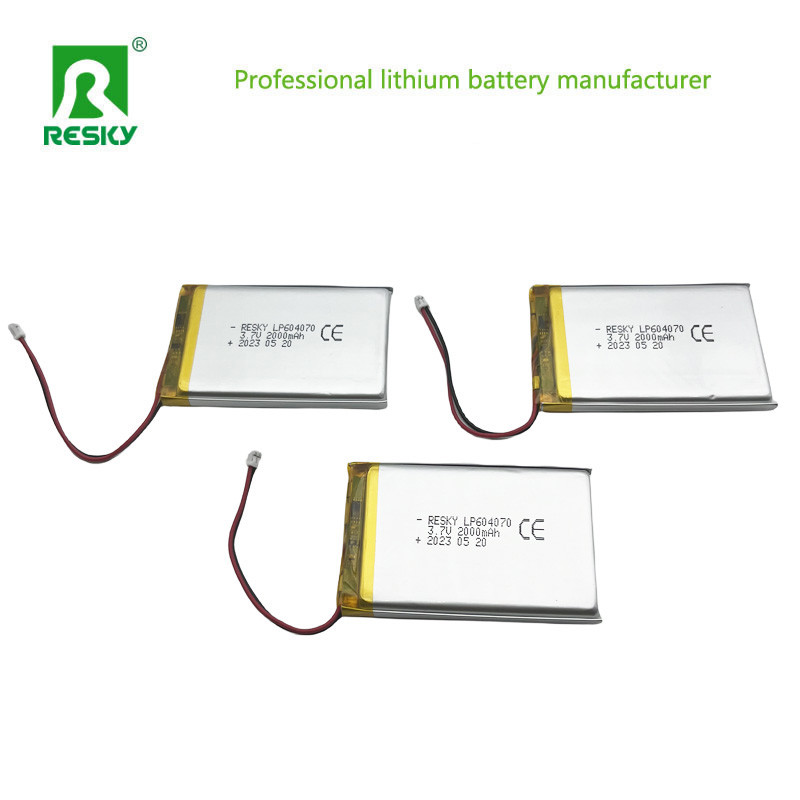

Picures:

Portable Medical Device Lipo Cells 604070 3.7V 2000mAh 7.4wh
