Emergency Light Lithium Polymer Battery Cell 703048-2s 7.4V 1000mAh 7.4wh

  • 1
  • 2

Certification : CE, RoHS, MSDS, Un38.3

Brand Name : RESKY

Model Number : LP703048-2s

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : Western Union,T/T

Supply Ability : 50000pcs/day

Delivery Time : 7-10days

Packaging Details : Paper box

Model NO. : LP703048-2s

Electrolyte : Li(Nicomn)O2

Rechargeable : Chargeable

Nominal Capacity : 1000mAh

Weight : 9g

MOQ : 10PCS

Connector : Jst, Molex....

Original : Shenzhen, China

Specification : 14*30*53mm

Trademark : OEM

Contact Now

Product Description

PCM Protected Lipo solar battery cell 703048-2s 1000mAh lithium ion polymer 18650 Battery for Electrical Equipment

NO. Items Specifications
1 batteries 7.4v 1000mah lipo battery
2 Charge voltage 8.4V
3 Nominal voltage 7.4V
4 Nominal capacity 1000mAh 0.2C Discharge
5 Charge current
 Standard Charging:0.5C
Rapid charge: 1.0C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time
 Standard Charging:2.75hours(Ref.)
Rapid charge: 2hours(Ref.)
8 Max.charge current 1.0C
9 Max.discharge current 1.0C
10 Discharge cut-off voltage 2.5V0.25V(0.2C)
11 Operating temperature Charging: 0 °C ~45 °C
Discharging:0 °C ~45 °C
12 Storage temperature -10°C~ +45 °C
13 Dimension Length: 51±2mm (not including tabs)
Width: 30±0.5mm
Thickness:15±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 cycle time ≥500times

Application:

Consumer Electronics:

Smartphones and Tablets: Li-poly batteries are the primary power source for these devices, enabling long battery life and compact designs.

Wearable Devices: From smartwatches to fitness trackers, Li-poly batteries provide the necessary power for extended use without adding significant weight.

Cameras: Digital cameras, especially mirrorless and DSLR models, often use Li-poly batteries to support high-energy operations like continuous shooting and video recording.

Portable Devices:

Laptops and Notebooks: Li-poly batteries contribute to the sleek and lightweight design of modern laptops.

Portable Game Consoles: These devices rely on Li-poly batteries for extended gaming sessions without being tethered to a power outlet.

E-readers: Devices like Kindles use Li-poly batteries to ensure long reading times on a single charge.

Picures:

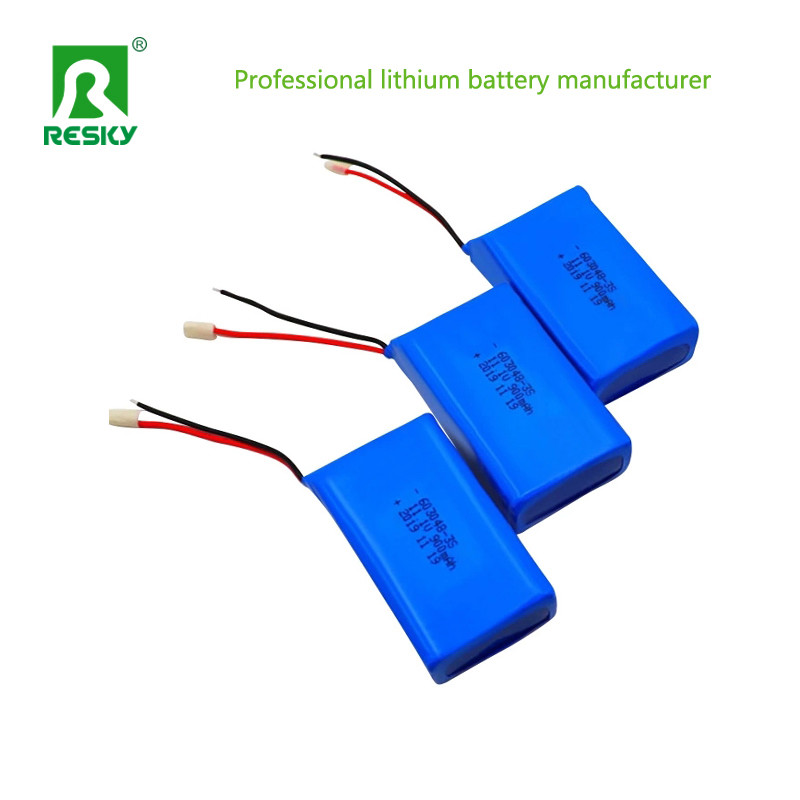

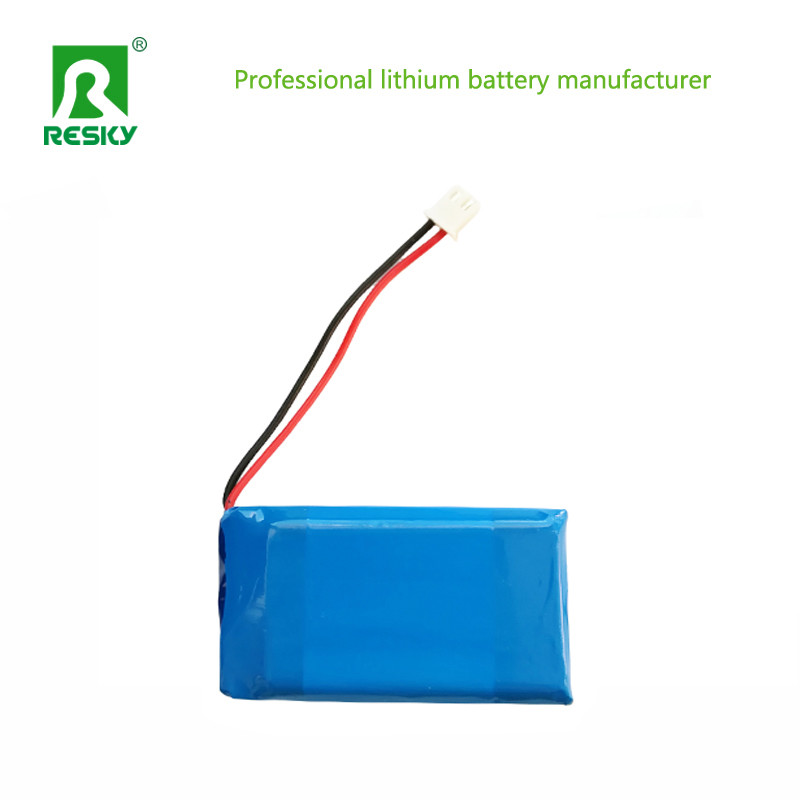

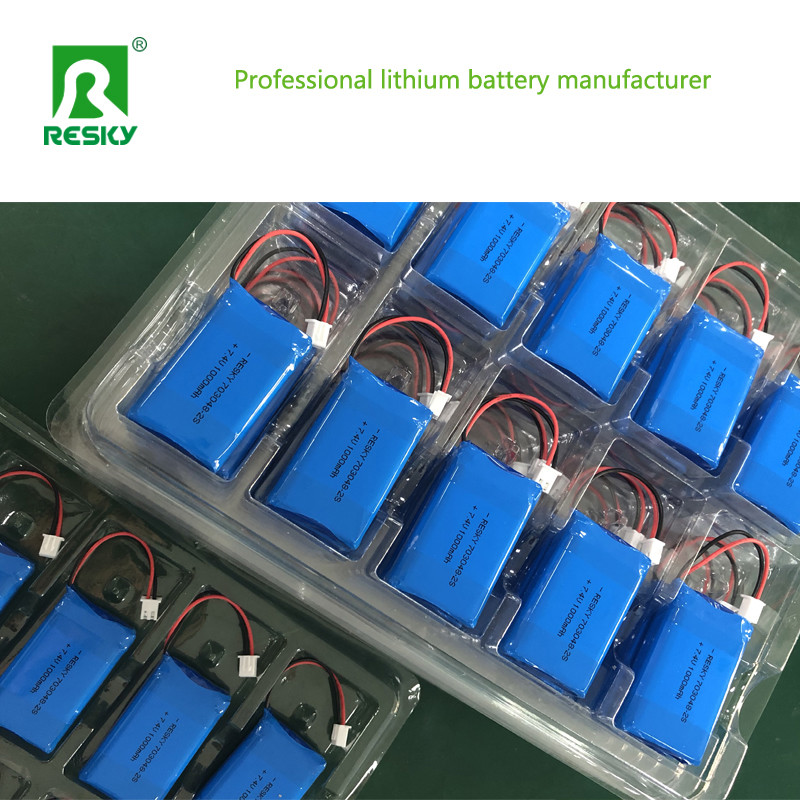

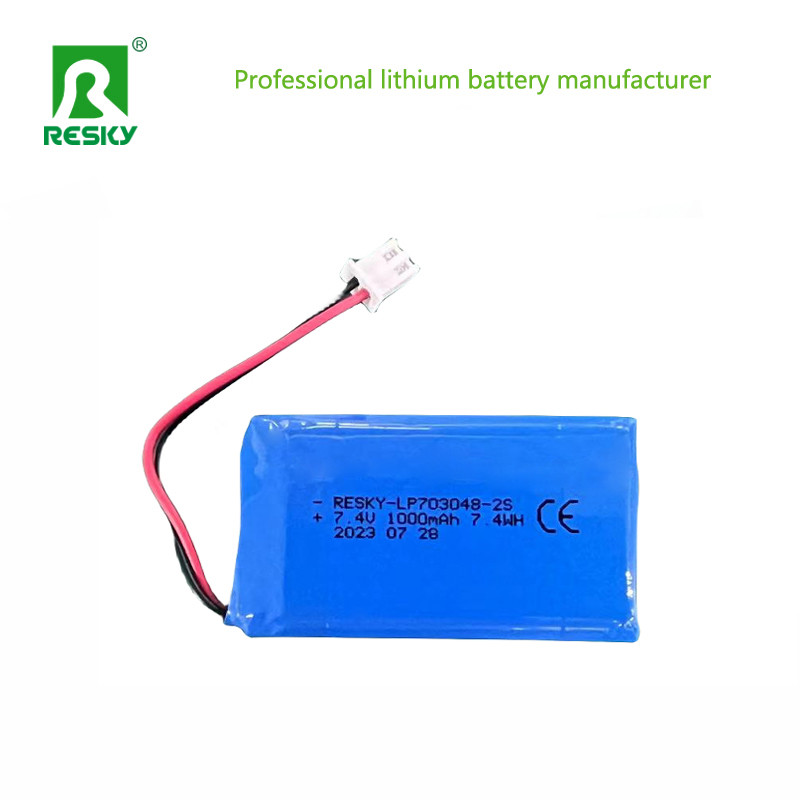

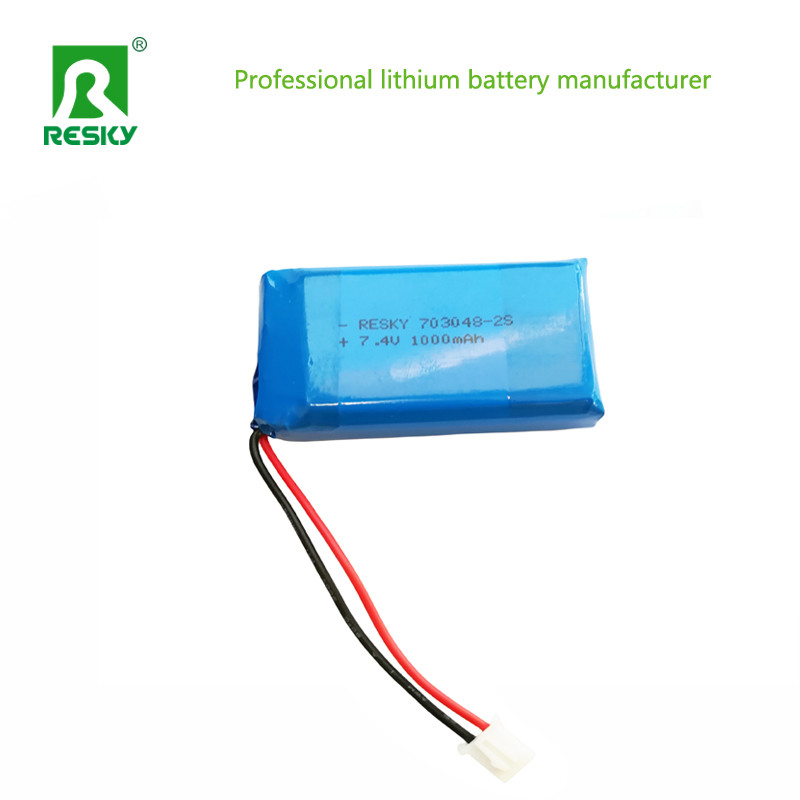

Emergency Light Lithium Polymer Battery Cell 703048-2s 7.4V 1000mAh 7.4wh

Emergency Light Lithium Polymer Battery Cell 703048-2s 7.4V 1000mAh 7.4wh

Emergency Light Lithium Polymer Battery Cell 703048-2s 7.4V 1000mAh 7.4wh

Emergency Light Lithium Polymer Battery Cell 703048-2s 7.4V 1000mAh 7.4wh

Emergency Light Lithium Polymer Battery Cell 703048-2s 7.4V 1000mAh 7.4wh
