Product Description
Power Lipo Battery Cell 103665 3.7v 4.2v 3000mAh 11.1wh Rechargeable Lithium Ion Battery Cell
| NO. | Items | Specifications |
| 1 | batteries | 3.7v 3000mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 3000mAh 0.2C Discharge |
| 5 | Charge current
| Standard Charging:0.5C
Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time
| Standard Charging:2.75hours(Ref.)
Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 0.5C |
| 9 | Max.discharge current | 0.5C |
| 10 | Discharge cut-off voltage | 2.5V0.25V(0.2C) |
| 11 | Operating temperature | Charging: 0 °C ~45 °C
Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length:65±2mm (not including tabs)
Width:36±0.5mm
Thickness:10±0.5mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥500times |
Application:
Tablets and E - readers: The 3000mAh capacity can support the power - intensive operations of tablets, including running multiple applications, displaying high - resolution graphics, and maintaining Wi - Fi or cellular connections. Similarly, for e - readers, it can provide weeks of reading time on a single charge, enhancing the user experience.
Portable Media Players and Gaming Devices: High - end portable media players and gaming consoles require significant power to drive features such as large - screen displays, powerful audio systems, and complex gaming graphics. The 103665 battery can meet these power demands, enabling extended usage periods for entertainment purposes.
Wireless Security Cameras: These cameras often need to operate continuously, transmitting video feeds wirelessly. The long - lasting power provided by the 3000mAh battery ensures that the cameras can function without interruption, providing reliable security monitoring over extended periods.
Portable Medical Devices: Devices such as portable patient monitors, infusion pumps, and handheld diagnostic tools rely on a reliable power source. The high - capacity and stable power output of this battery make it suitable for ensuring the continuous and accurate operation of these critical medical devices.

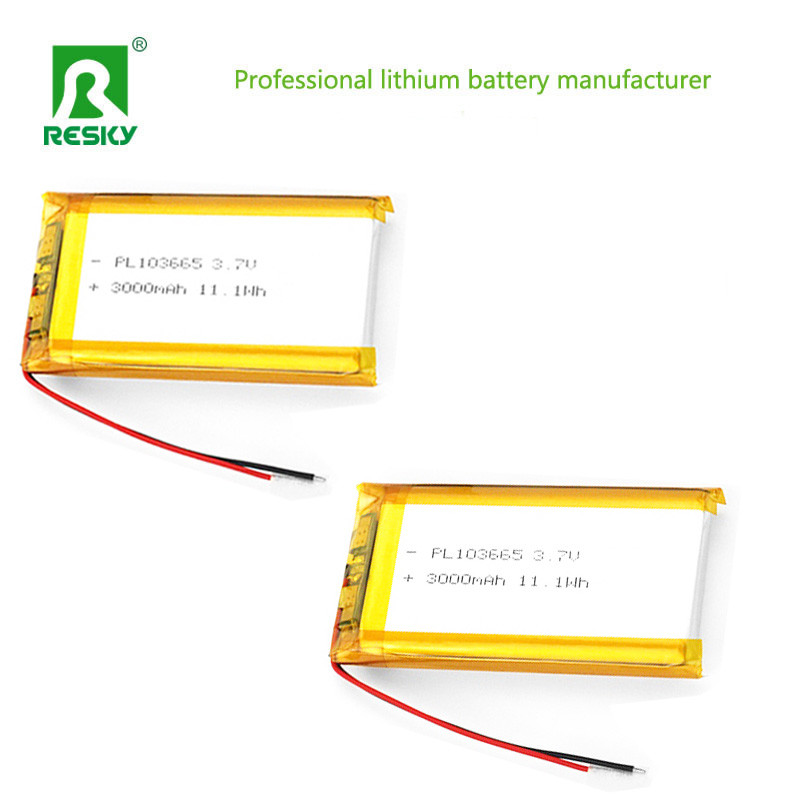

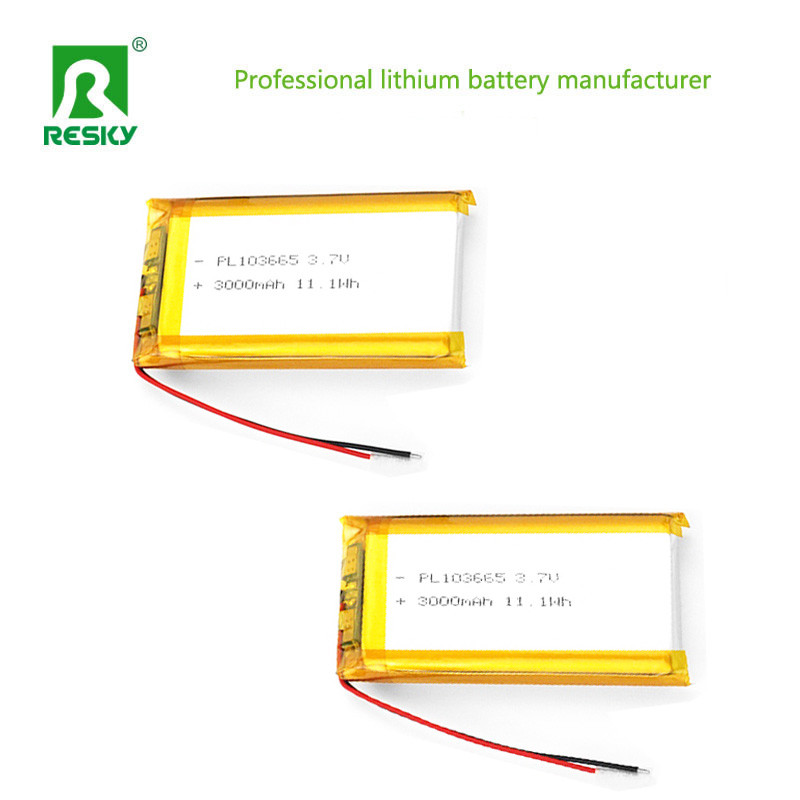

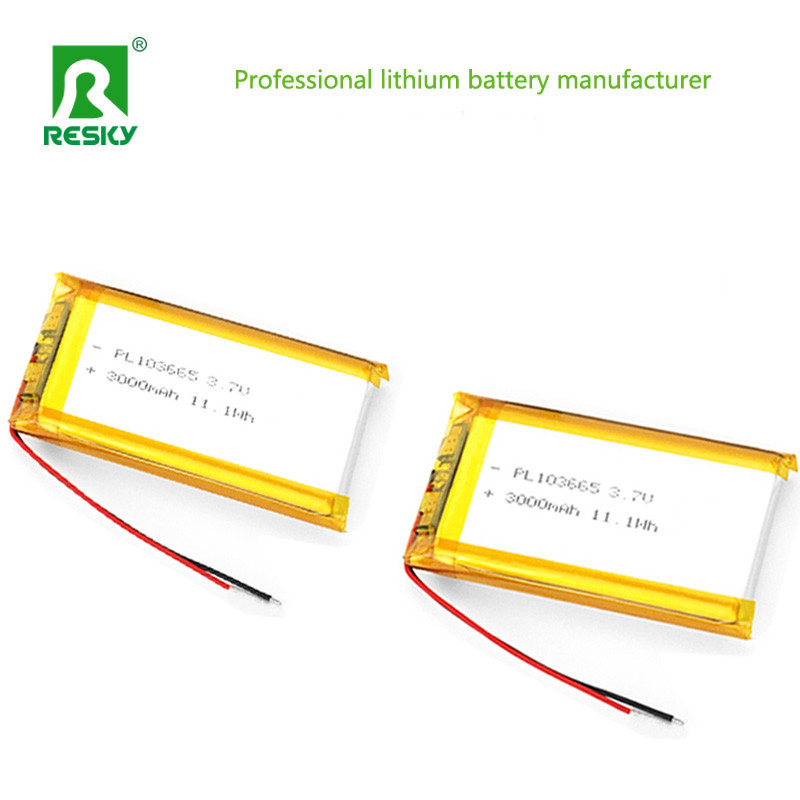

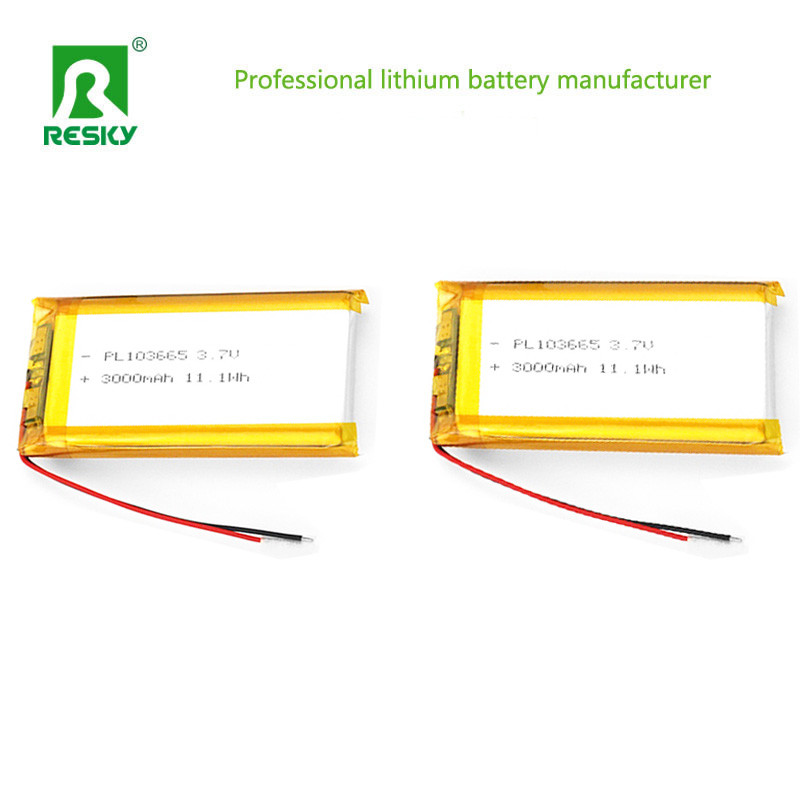

Pictures:
